Technical data
For architects,
contractors and the simply curious.
Output172 W/m²
Annual yield150 kWh/m²
Dimensions590 × 590 × 8 mm
Weight8 kg
Glass2 layers, 4 mm toughened
Operating temperature−40 °C to +70 °C
Fire ratingEN-13501-5 BROOF(t2)
Snow load12 kPa
Wind load4.8 kPa
ConnectorMC4 Stäubli (IEC 62852)
Min. roof pitch15°
Warranty10-year product / 25-year output
Documentation
Download the documents
PDF · in Norwegian
Product data sheet
Technical data on one page: electrical, dimensions and weight, loads, standards and warranty.
Download · revision B →Previous edition · revision A →PDF · in Norwegian
Installation guide
How Solskifer is installed: roof build-up, batten spacing, details, fixing and electrical. Version 6.2.
Download · revision B →Previous edition · revision A →PDF · in Norwegian
O&M documentation
Operation and maintenance — inspection, cleaning, troubleshooting and end-of-life handling.
Download · revision B →Previous edition · revision A →PDF · in Norwegian
Warranty terms
10-year product warranty, 25-year power output warranty and 25-year weather-tightness warranty — full terms.
Download · revision B →Previous edition · revision A →Solutions
The details that resolve themselves

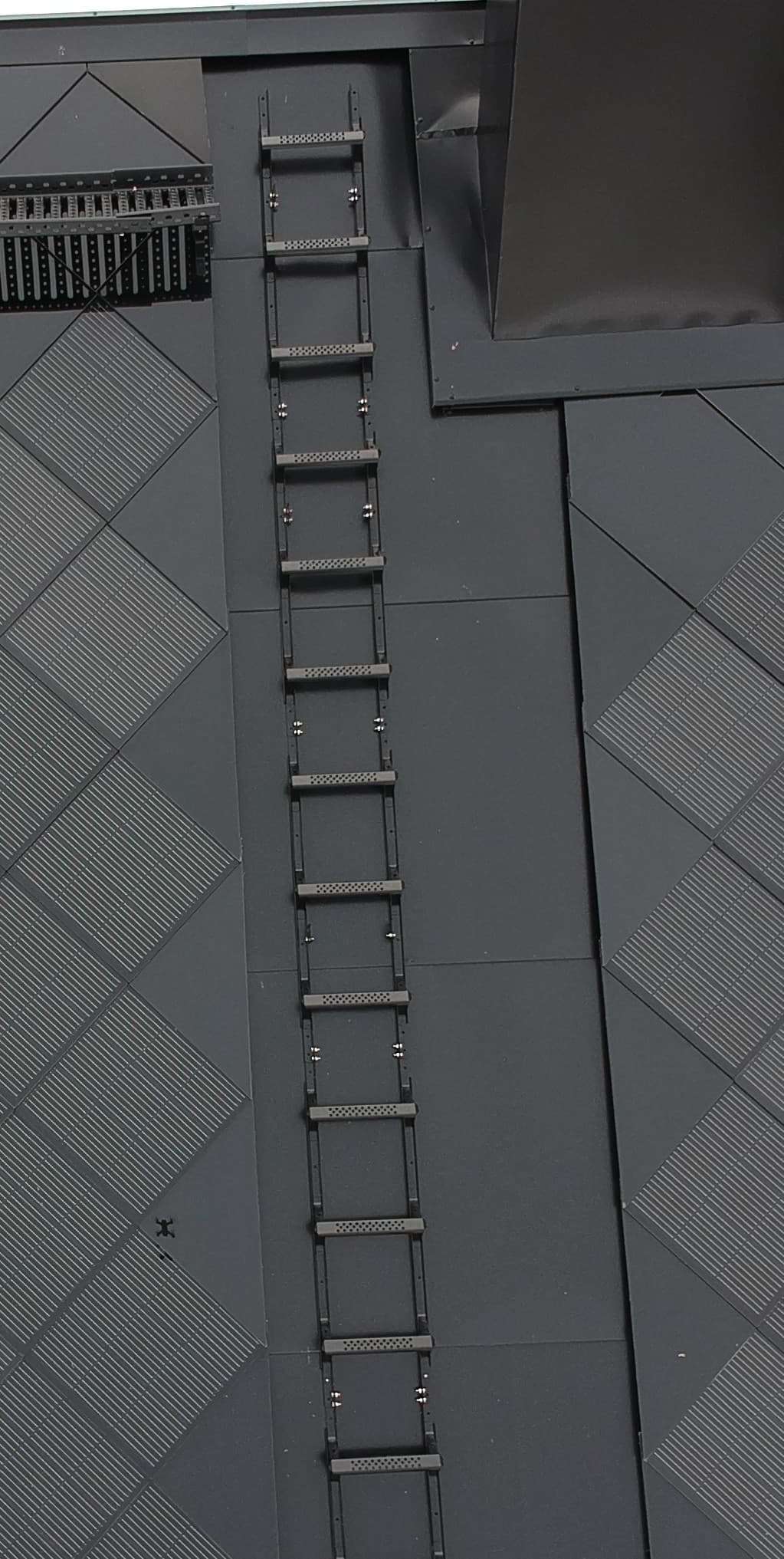

Roof ladder
An integrated roof ladder in the same expression as the roof, for safe and discreet access to the chimney and roof surface.

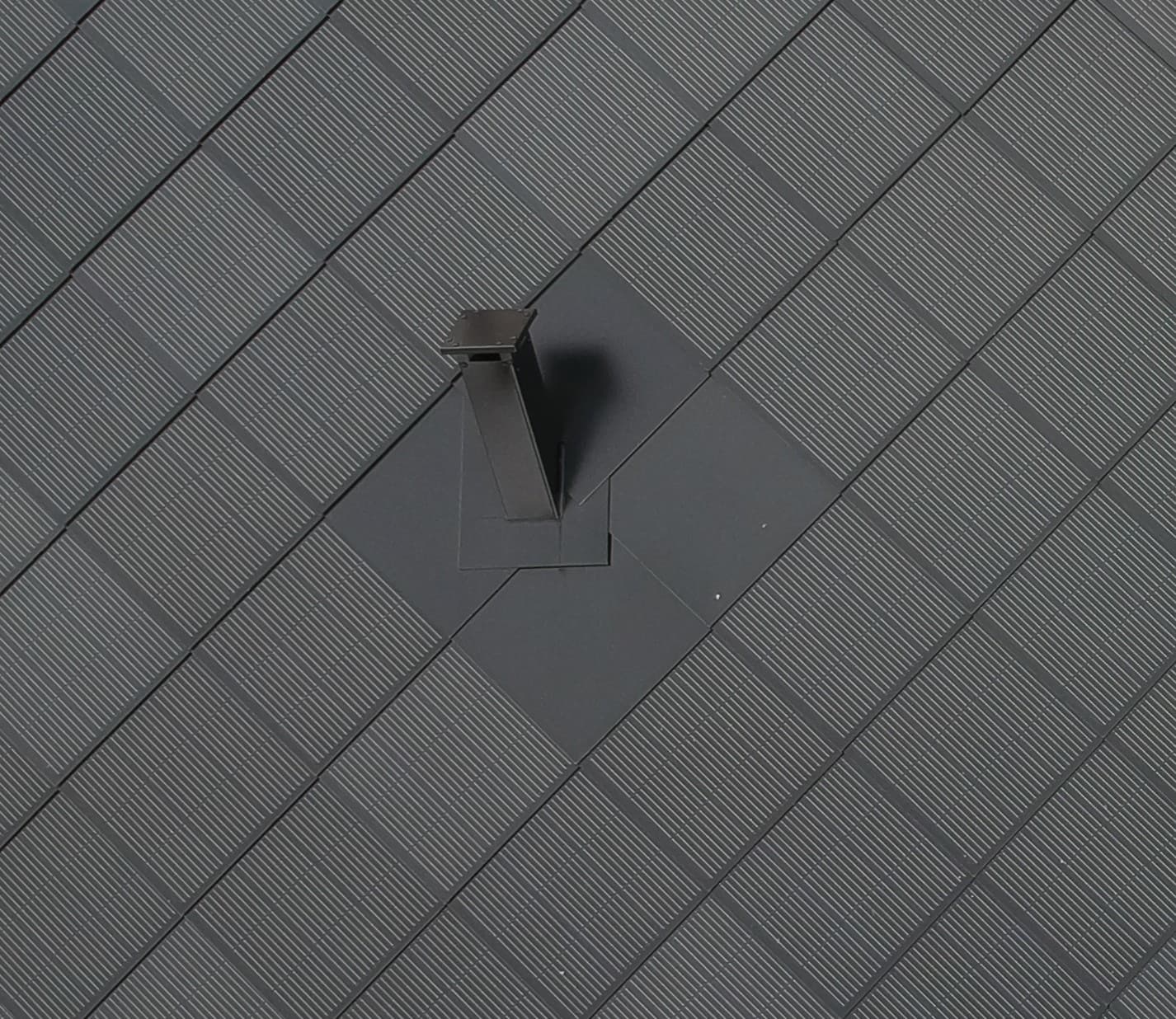

Chimney and vent penetrations
Tight, tailored penetrations for chimneys and ventilation, recessed into the roof surface without breaking the whole.
